Summary
CNC partition designs use Computer Numerical Control (CNC) cutting to produce precise, intricate patterns on MDF, wood, metal, and WPC panels, creating stylish room dividers that allow light and air to pass through while clearly defining zones. From a hall CNC partition design with a geometric jali to a backlit CNC wood partition design for a living room feature wall, costs range from ₹150 to ₹500 per sq ft.
CNC partition designs are one of the fastest-growing interior choices in Indian homes in 2026. A CNC router or laser cutter carves patterns with 0.1mm precision into materials. If you need a living room CNC partition design to separate the seating and dining zones, a CNC design for a kitchen partition to screen the cooking area from an open plan, or a CNC jali partition for a pooja room, there is a design, material, and budget tier for every application.
What Is a CNC Partition Design?
A CNC-cut partition design is a decorative and functional screen produced by feeding a sheet of material into a CNC machine that carves a programmed pattern into the surface.
Recommended Reading
Gypsum vs POP Ceiling: Which is Better f...
31.4K Views
Jan 31, 2025
HDHMR vs Plywood: Price, Durability &...
26.7K Views
Jan 31, 2025
Normal House Front Elevation Design For ...
25.9K Views
Jan 31, 2025
₹30 Lakh House Design: Design Your Dream...
23.1K Views
Jan 31, 2025
20+ Latest House Designs for 2026
22.7K Views
Jan 31, 2025
- CNC stands for Computer Numerical Control a manufacturing process that moves cutting tools with computer-programmed precision
- The cut pattern creates open spaces that allow light, air, and partial visual connection through the panel
- CNC jali partition designs range from traditional Indian lattice and floral motifs to clean geometric grids and abstract contemporary patterns
- Panels are fixed floor-to-ceiling, half-height, or within a structural timber or metal frame, depending on the application and room size
- Backlighting with warm LED strips is frequently added to create a glowing feature wall after dark
15 CNC Partition Designs for Home and Office
All 15 designs are presented in a consistent format covering pattern, material, ideal use, key highlight, and approximate cost, making direct comparison straightforward across different rooms, styles, and budgets.

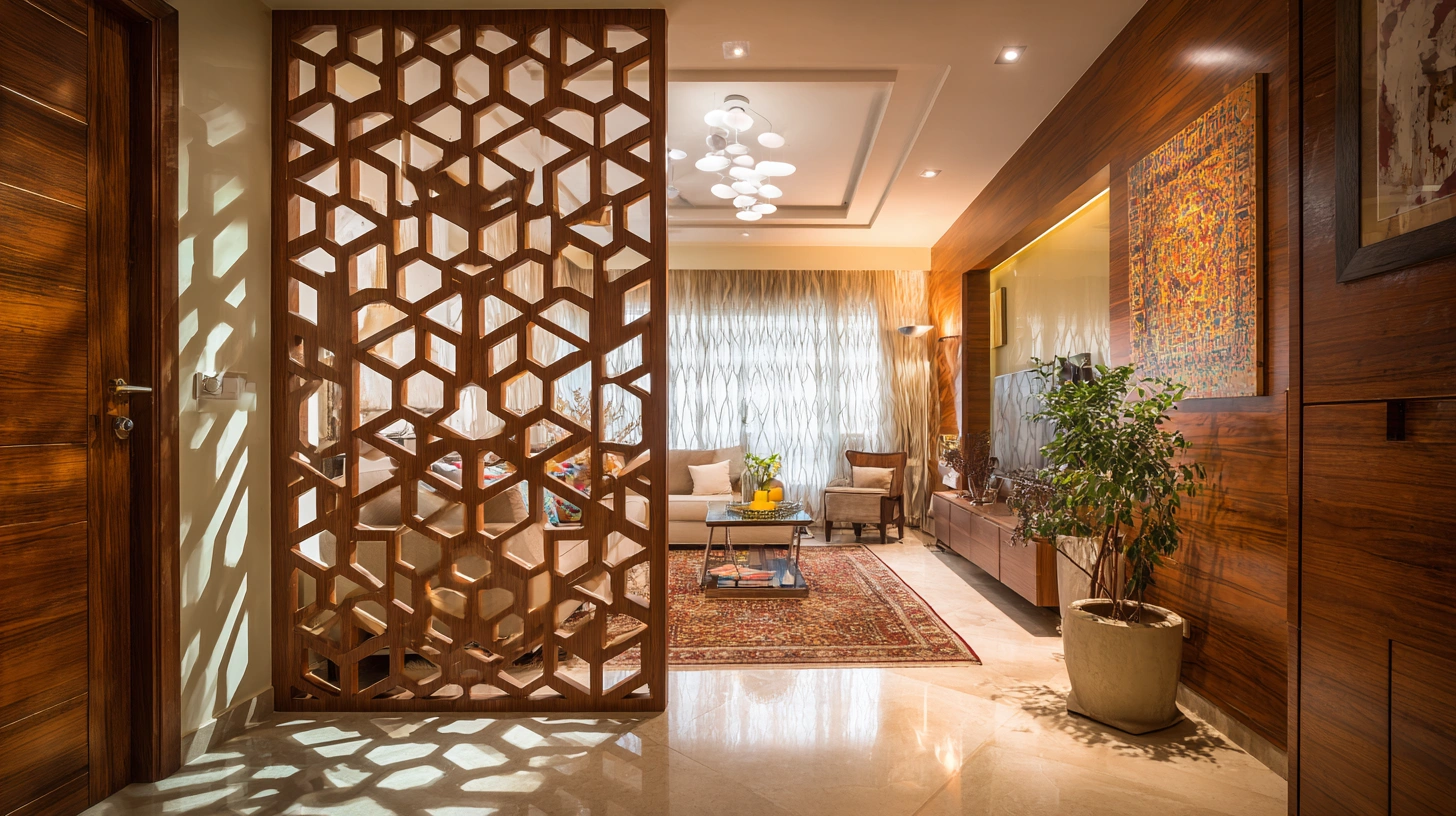

1. Geometric Jali CNC Partition
The most installed hall CNC partition design in Indian urban apartments. A floor-to-ceiling MDF panel with a repeating geometric jali of hexagons, triangles, or interlocking squares separates the entry foyer from the main living area. It filters light beautifully while making a strong first impression without entirely blocking sightlines.
| Feature | Details |
| Pattern | Repeating geometric jali hexagonal or triangular grid |
| Material | 12mm MDF with Duro paint or WPC |
| Lighting | Optional LED strip along frame edges |
| Ideal For | Foyer to living room separation, 2 BHK and 3 BHK |
| Key Highlight | Filters light, defines entry zone, strong visual impact |
| Approx. Cost | ₹190–₹300 per sq ft |

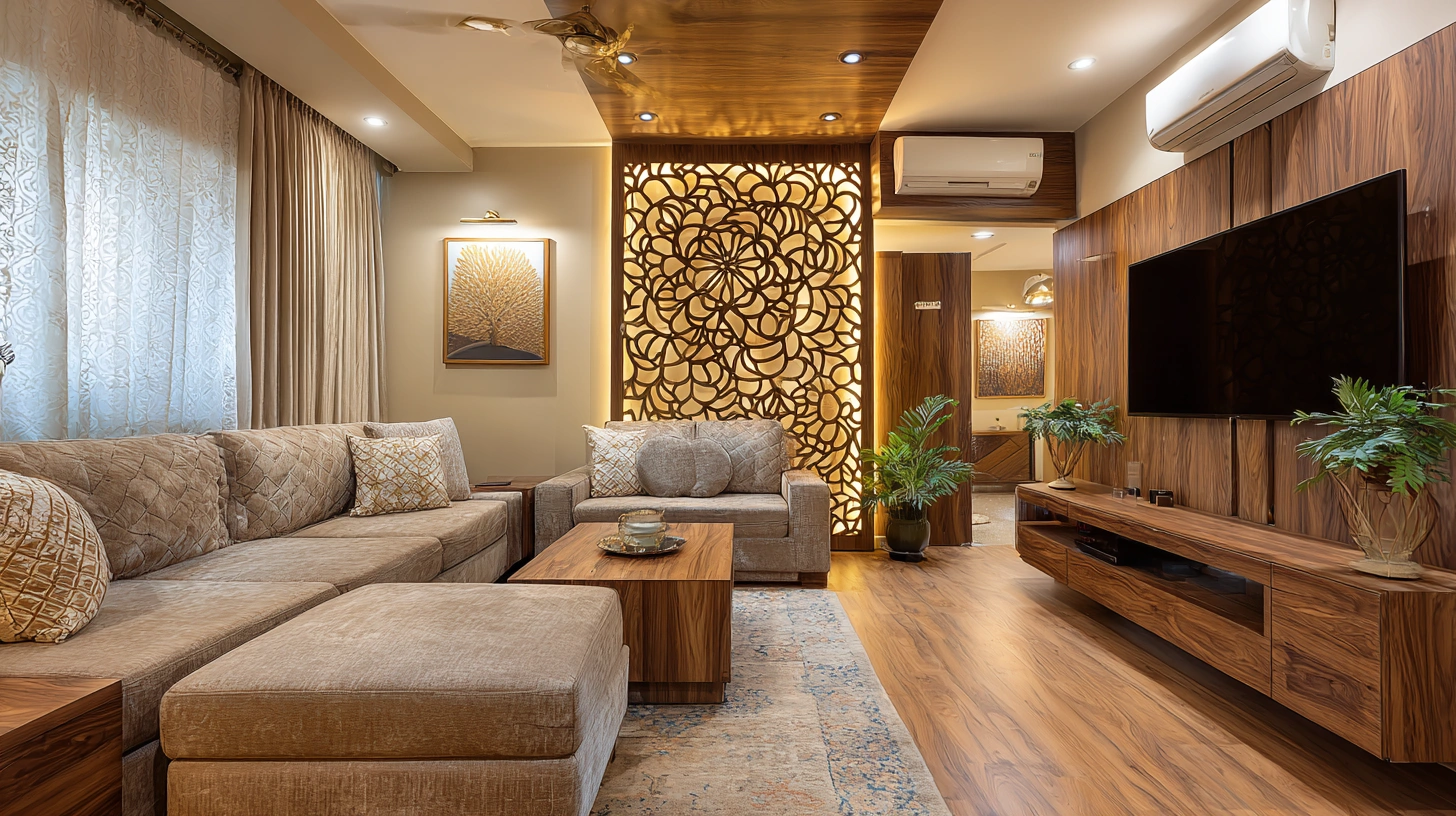

2. Backlit Mandala CNC Partition Wall
A living room CNC partition design featuring a large mandala or circular motif at the centre of the panel, backlit with warm LED strips and set within a solid frame. During the day, it reads as a sculptural wall element; after dark, the backlight transforms it into a glowing centrepiece.
| Feature | Details |
| Pattern | Central mandala motif with geometric surround |
| Material | 12mm MDF with Duro paint and acrylic back sheet |
| Lighting | Warm white or amber LED strip behind the panel |
| Ideal For | Living room feature wall, sofa backdrop, TV wall side panel |
| Key Highlight | Sculptural by day, glowing focal point by night |
| Approx. Cost | ₹280–₹420 per sq ft |

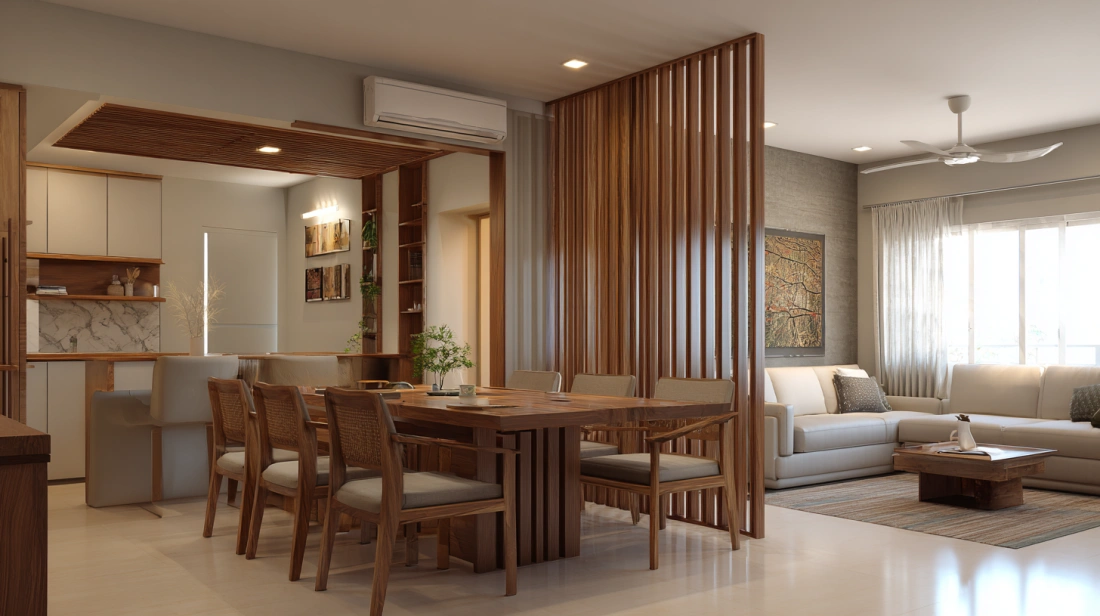

3. Vertical Slat CNC Cutting Partition Design
A simple CNC-cut partition design with evenly spaced vertical slats routed through an MDF or solid wood panel. The uniform rhythm feels contemporary and uncluttered, works with most interior styles, and is one of the easiest CNC partition wall designs to maintain and repaint over time.
| Feature | Details |
| Pattern | Uniform vertical slat cuts with consistent 10–15mm gaps |
| Material | MDF with matte paint or solid teak with natural finish |
| Lighting | Optional recessed ceiling spotlight for shadow casting |
| Ideal For | Minimalist and contemporary living rooms, all sizes |
| Key Highlight | Clean geometry, timeless look, suits most interior styles |
| Approx. Cost | ₹150–₹250 per sq ft |

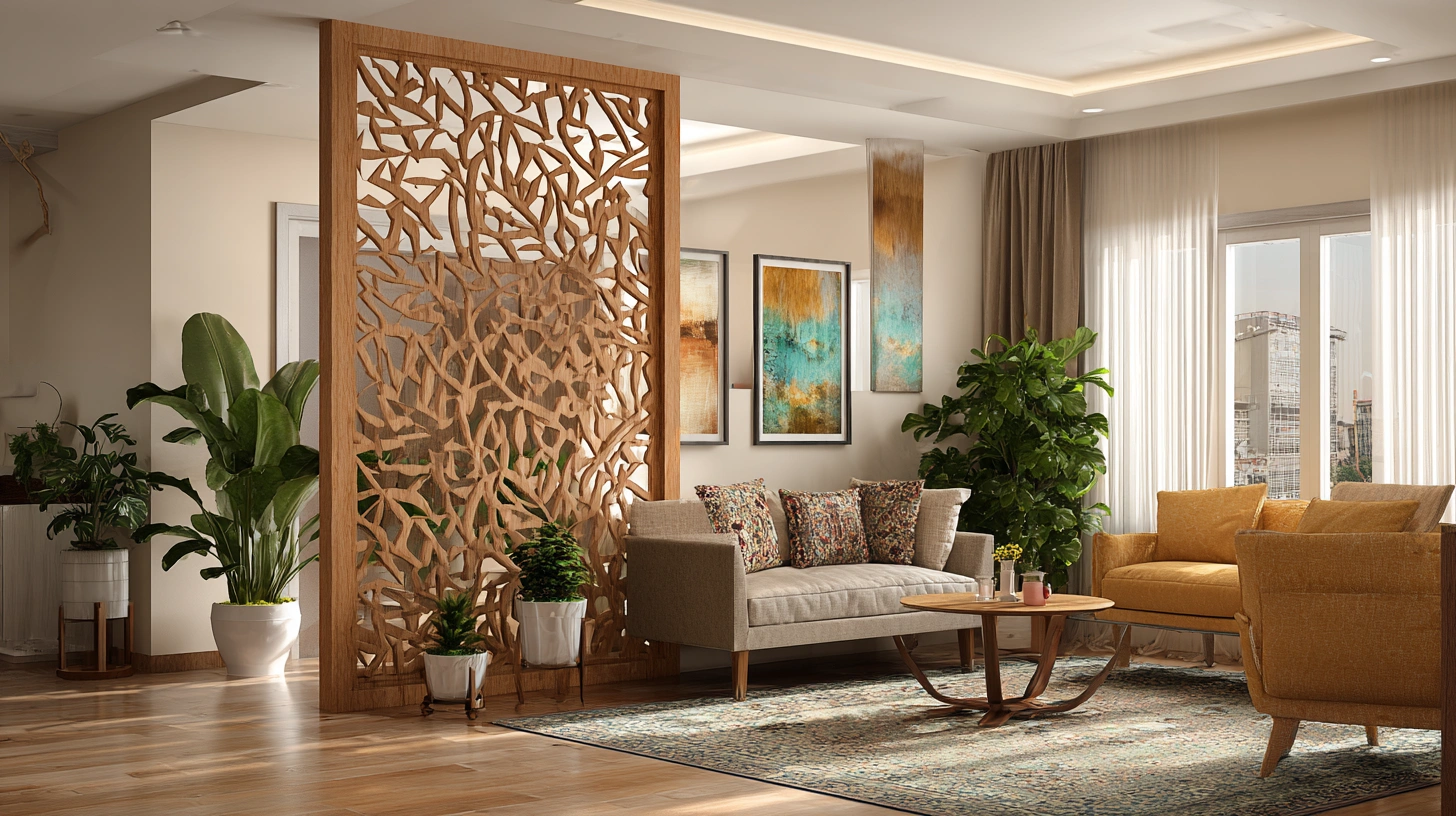

4. Floral and Botanical CNC Jali Partition
A CNC jali partition using flowing floral or leaf motifs, lotus, banana leaf, or abstract botanical patterns cut through the panel. This design connects Indian craft tradition with contemporary CNC precision.
| Feature | Details |
| Pattern | Flowing botanical motif, lotus, leaf, or vine pattern |
| Material | MDF with Duro paint or WPC for humid zones |
| Lighting | Optional warm backlighting to highlight the pattern |
| Ideal For | Traditional, warm-contemporary, and Indian-heritage homes |
| Key Highlight | Organic warmth connects to the Indian craft tradition |
| Approx. Cost | ₹200–₹320 per sq ft |

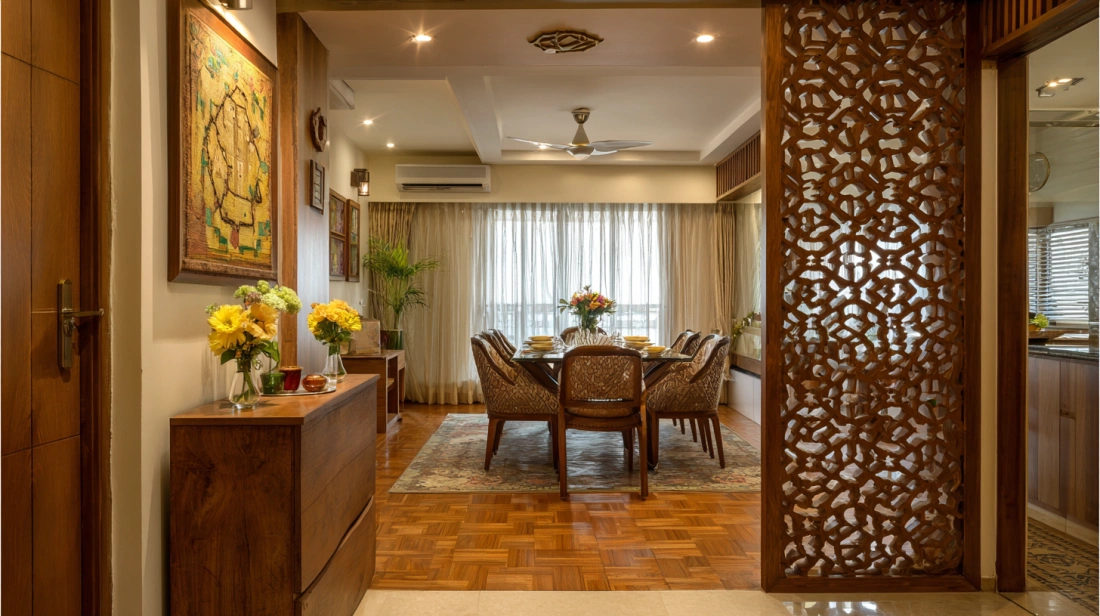

5. Traditional Indian Jaali CNC Partition
A CNC wood partition design inspired by Mughal and Rajasthani jaali architecture, with intricate repeating lattice patterns that cast beautiful shadow play across the floor and walls as light moves through the day.
| Feature | Details |
| Pattern | Traditional Mughal or Rajasthani lattice jaali motif |
| Material | Solid teak with lacquer finish or 18mm MDF with duco |
| Lighting | Natural light preferred; warm LED optional at night |
| Ideal For | Traditional homes, heritage-style villas, joint family homes |
| Key Highlight | Classic Indian jaali executed with CNC precision |
| Approx. Cost | ₹220–₹380 per sq ft |

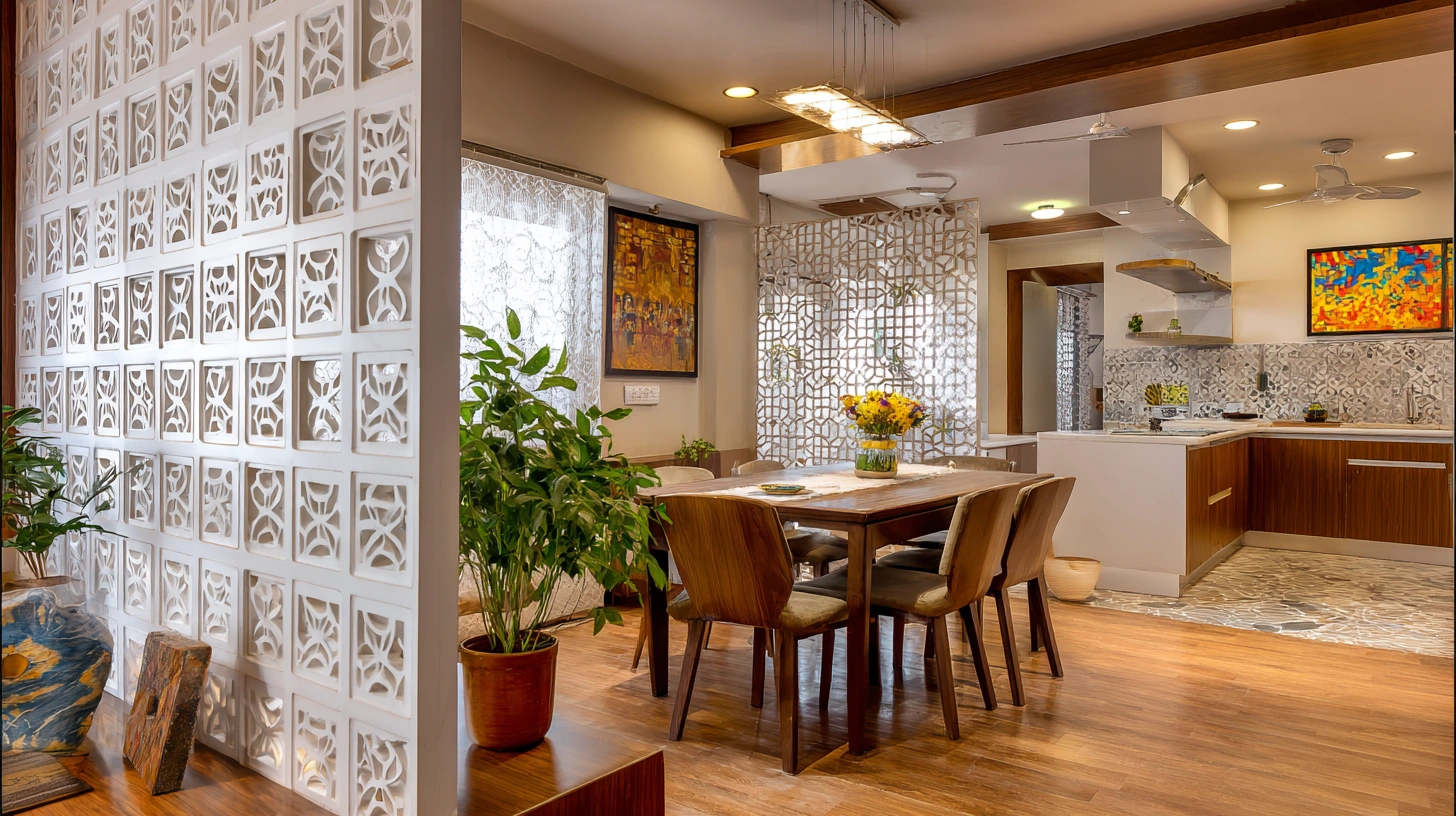

6. CNC Design for Kitchen Partition
A CNC kitchen partition design uses a medium-height MDF or WPC panel, typically 4 to 5 ft tall, to screen the cooking zone from an open-plan living or dining area without blocking light or airflow.
| Feature | Details |
| Pattern | A simple geometric grid or vertical slat is easy to clean |
| Material | WPC (moisture-resistant) or MDF with semi-gloss paint |
| Lighting | Under-panel LED strip for soft ambient glow at base |
| Ideal For | Open-plan kitchen-living layouts, 2 BHK and 3 BHK flats |
| Key Highlight | The screens in the cooking zone allow light and air through |
| Approx. Cost | ₹180–₹300 per sq ft |

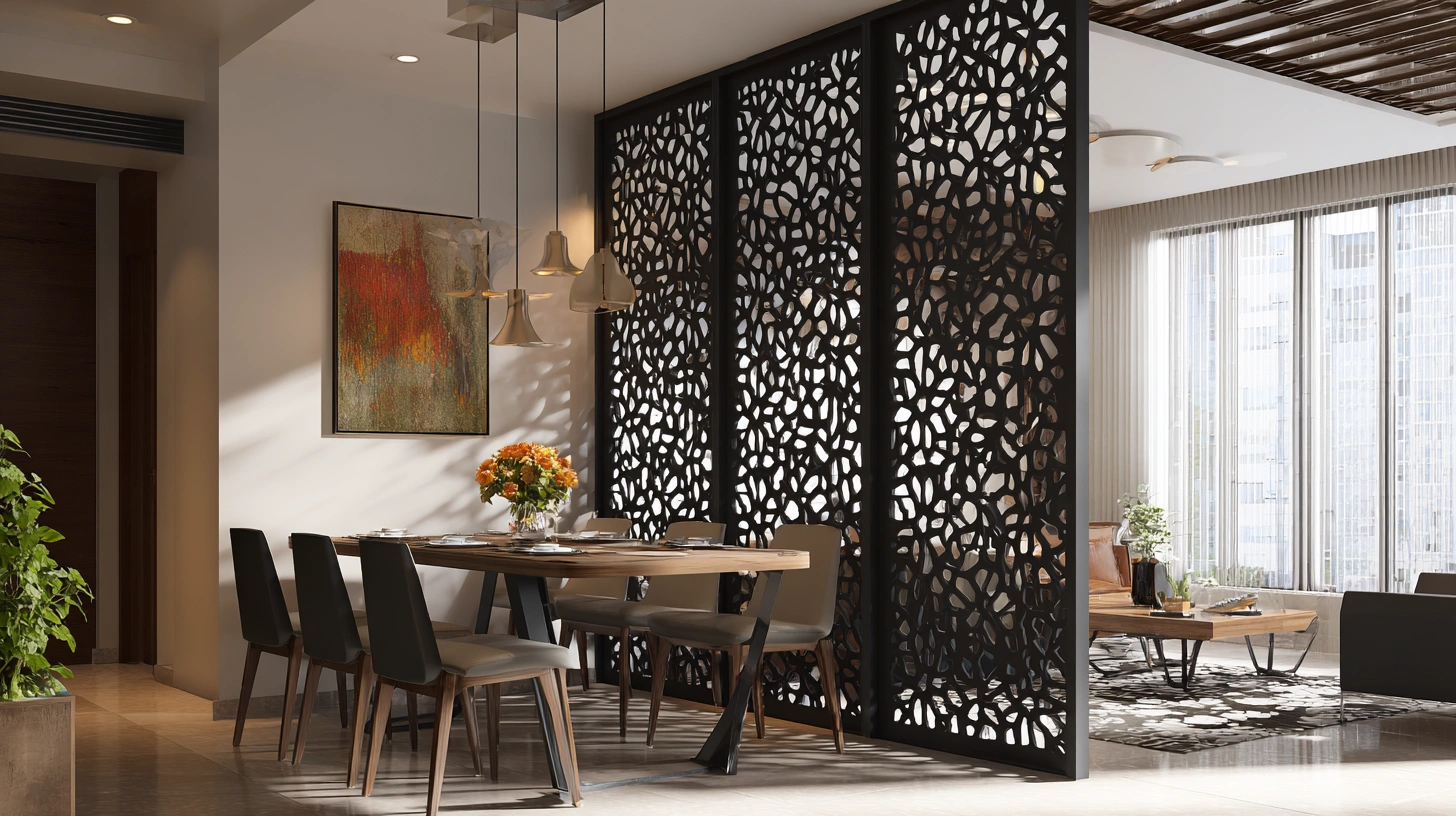

7. Metal Laser-Cut CNC Jali Partition
An interior CNC cutting design for partition using a laser-cut mild steel or aluminium screen finished in matte black, gold, or brushed copper. One of the most premium CNC cutting design for wall partition options available in 2026.
| Feature | Details |
| Pattern | Fine geometric or abstract motif, precision laser cut |
| Material | Mild steel or aluminium with powder-coat finish |
| Lighting | Backlit with a warm LED strip for dramatic shadow casting |
| Ideal For | Contemporary, industrial-modern, and luxury living rooms |
| Key Highlight | Finer detail than MDF, stronger, premium finish |
| Approx. Cost | ₹350–₹600 per sq ft |

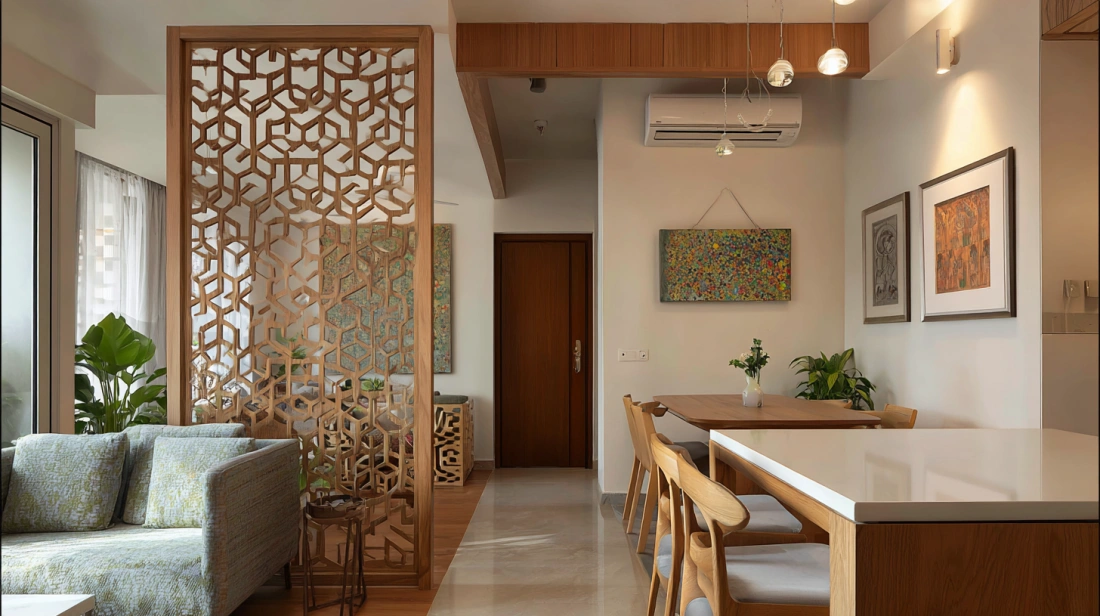

8. Half-Height CNC Partition
A half-height CNC cutting design for partition typically 3.5 to 4.5 ft tall, placed between the living and dining zones in open-plan apartments. The upper visual field stays fully connected while the CNC panel below defines each zone.
| Feature | Details |
| Pattern | Geometric or abstract jali on a half-height panel |
| Material | 12–18mm MDF with matte or satin paint |
| Lighting | No backlighting needed, natural light does the work |
| Ideal For | Open-plan living-dining in 2 BHK apartments |
| Key Highlight | Zones the space without closing off the upper visual field |
| Approx. Cost | ₹160–₹280 per sq ft |

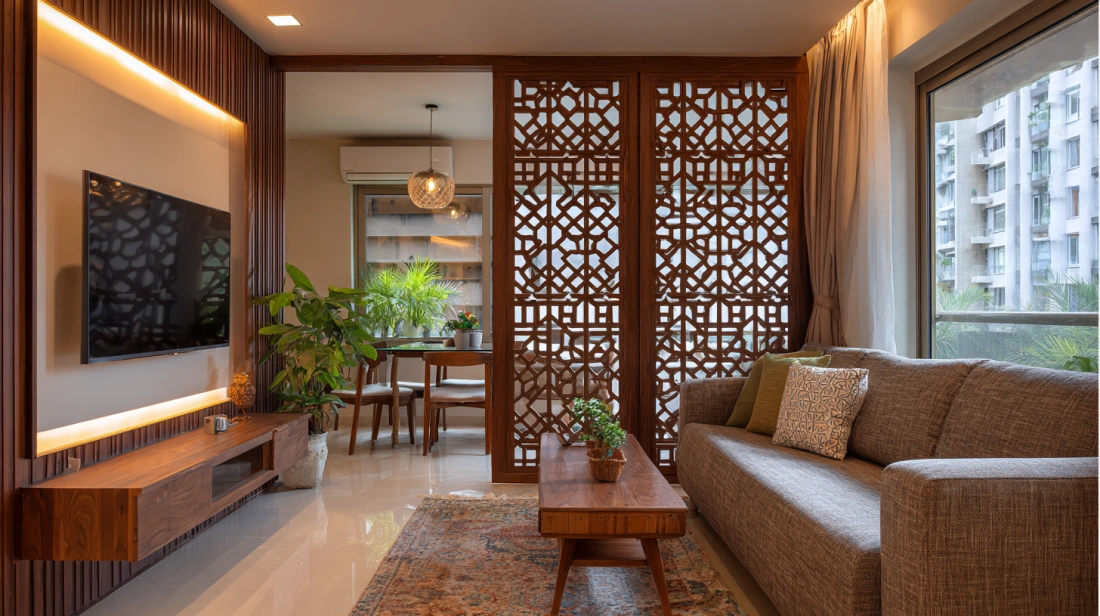

9. Double-Layer CNC Partition with Depth Effect
A CNC partition wall design using two panels placed 4–6 inches apart within a single frame, each carrying a different pattern. The most visually dramatic CNC cutting partition design available, suited to large luxury living rooms.
| Feature | Details |
| Pattern | Two distinct jali patterns are layered 4–6 inches apart |
| Material | MDF or metal panels within a deep structural frame |
| Lighting | LED strip mounted between the two panels |
| Ideal For | Luxury living rooms, design-forward homes, and large spaces |
| Key Highlight | Layered depth shadow-light effect shifts with angle |
| Approx. Cost | ₹450–₹700 per sq ft |

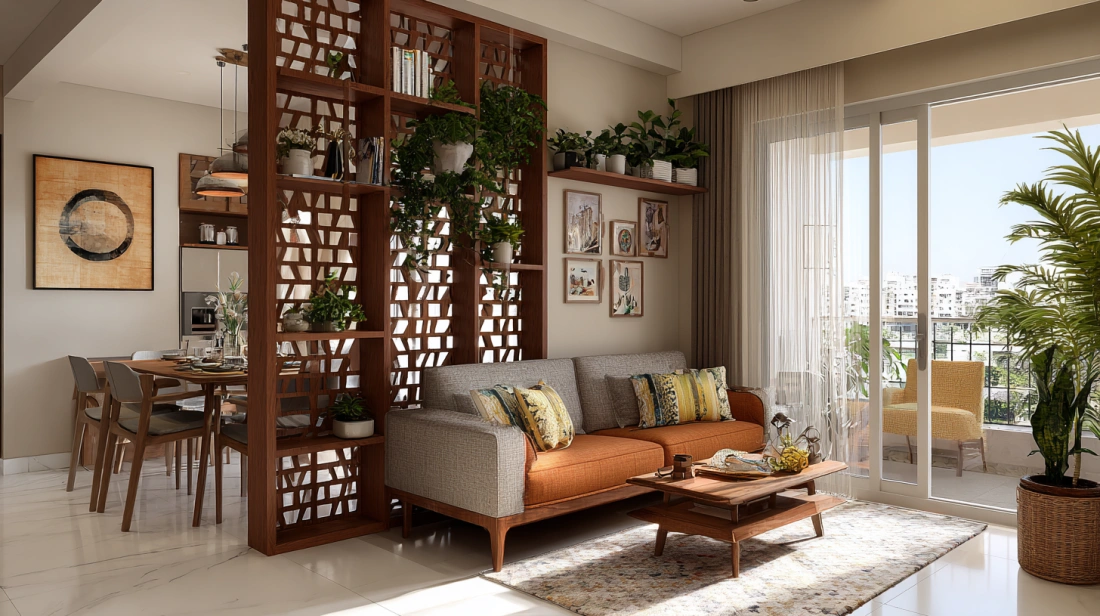

10. CNC Partition with Integrated Storage Frame
A hall CNC partition design that builds the jali panel into a structural wooden or metal frame, incorporating open shelving, closed cabinets, or display niches on one or both sides. The CNC panel provides the decorative and zoning function while the surrounding frame adds practical storage, making it a dual-purpose element ideally suited to compact Indian homes.
| Feature | Details |
| Pattern | CNC jali panel inset within an engineered wood storage frame |
| Material | Engineered wood frame with MDF jali panel inset |
| Lighting | LED cove inside the frame behind the jali panel |
| Ideal For | Compact homes, living-dining separation with storage needs |
| Key Highlight | Partition and storage combined in one element |
| Approx. Cost | ₹400–₹800 per sq ft (full unit including storage) |

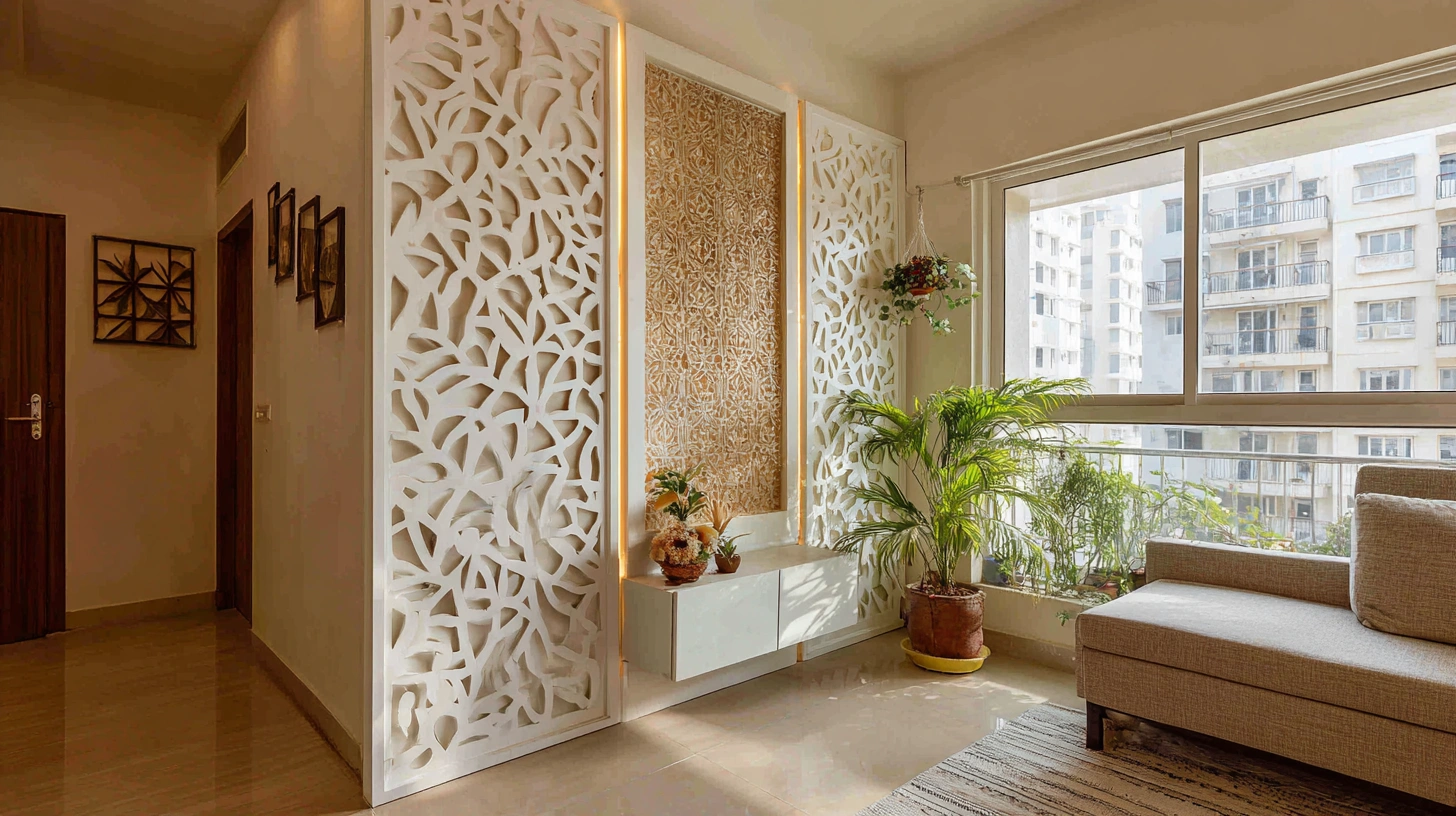

11. Om and Spiritual Symbol CNC Jali Partition
A CNC jali partition using spiritual symbols, Om, lotus, Ganesh, diya, or mandala to screen the pooja zone from the main living area. Light and air pass through the cuts while the sacred space remains visually distinct. This is one of the most-searched CNC designs for Indian homes and works with both traditional and contemporary interior styles.
| Feature | Details |
| Pattern | Om, lotus, Ganesh, or mandala spiritual symbol |
| Material | 12mm MDF with Duro paint or PVC for low maintenance |
| Lighting | Warm LED strip behind the panel for a divine glow |
| Ideal For | Pooja room screens, temple backdrop, sacred zone dividers |
| Key Highlight | Sacred atmosphere allows light and air through |
| Approx. Cost | ₹200–₹350 per sq ft |

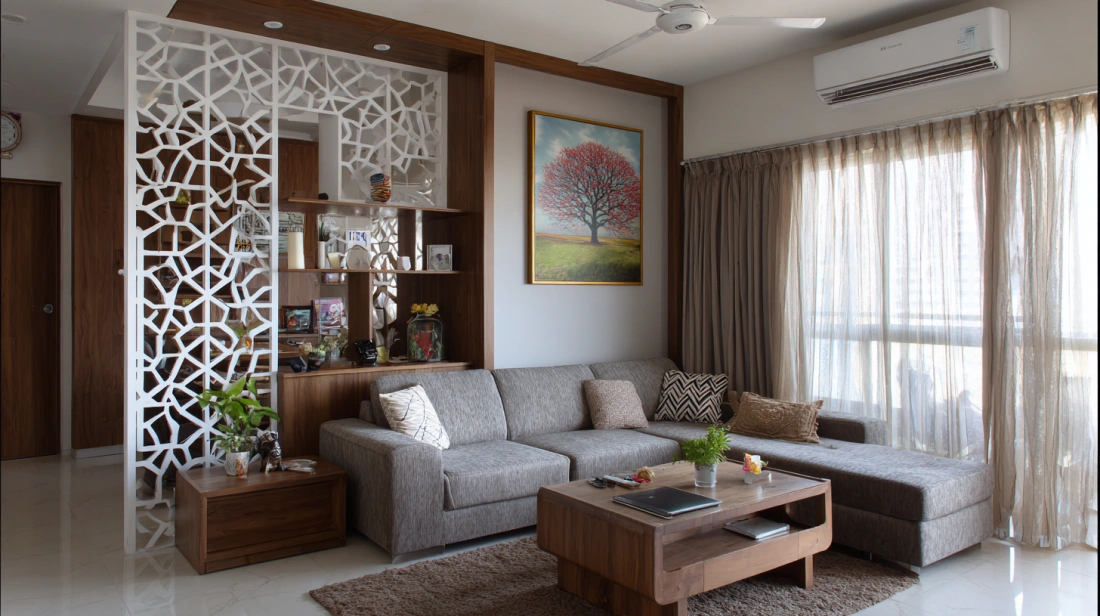

12. Two-Tone Colour CNC Cutting Partition Design
A CNC cutting design for partition that uses two contrasting colours: a white frame with a navy, olive, or charcoal inner panel to amplify the visual depth of the jali pattern. The colour contrast makes the cut pattern stand out more dramatically than a single-colour panel. Particularly effective in living rooms with a defined two-tone colour palette.
| Feature | Details |
| Pattern | Geometric or abstract jali at any complexity level |
| Material | 12mm MDF with two-tone duco paint finish |
| Lighting | Recessed ceiling spot to highlight colour contrast |
| Ideal For | Contemporary living rooms with a defined colour palette |
| Key Highlight | Colour contrast amplifies the depth of the cut pattern |
| Approx. Cost | ₹200–₹340 per sq ft |

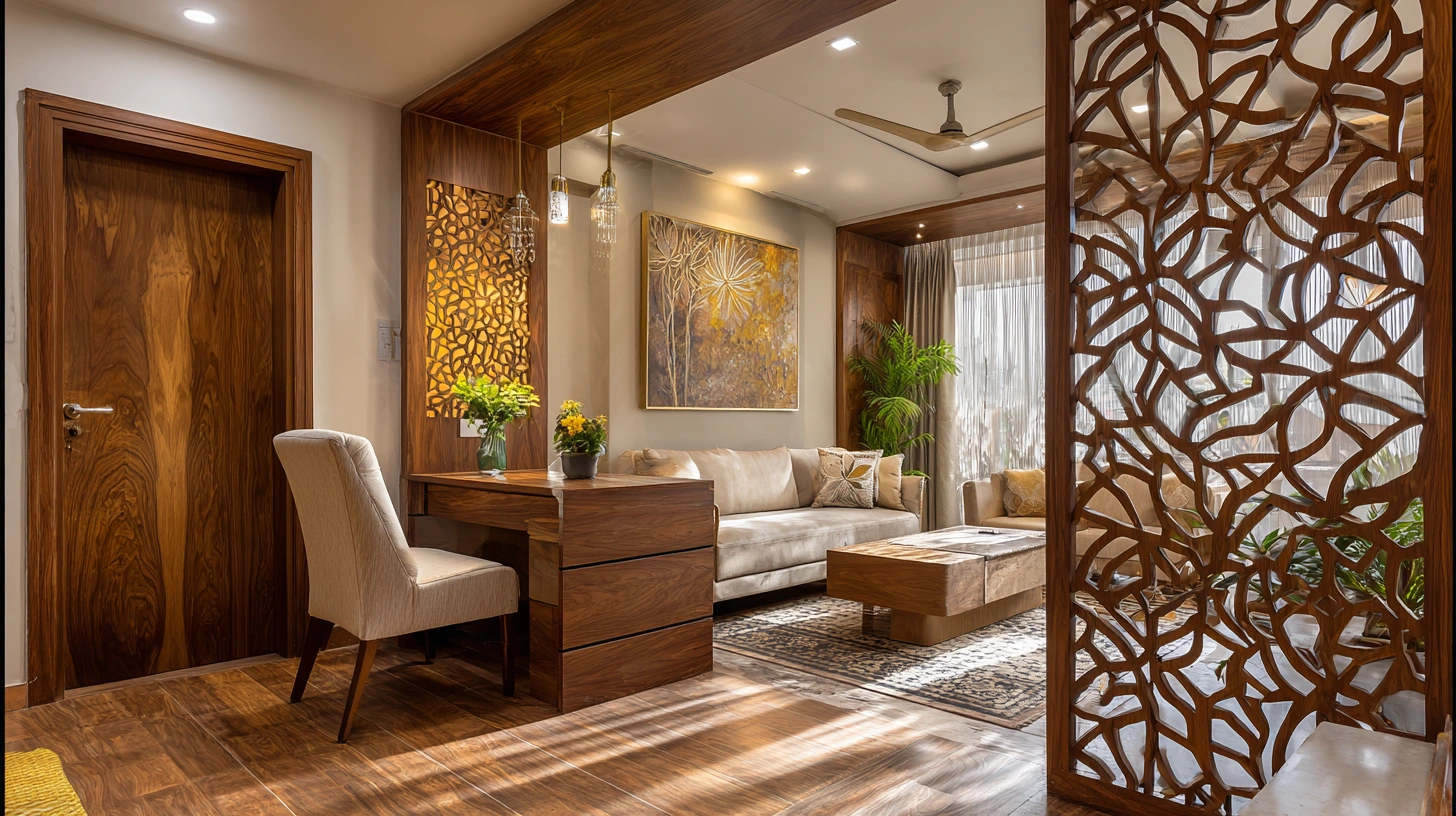

13. CNC Wood Partition Design
A CNC wood partition design using solid teak or sheesham rather than MDF, the grain of the wood becomes part of the visual composition alongside the cut pattern. The natural polish highlights the wood figure, making each panel unique.
| Feature | Details |
| Pattern | Geometric or botanical motif carved into solid wood |
| Material | Solid teak or sheesham with natural lacquer polish |
| Lighting | Warm directional spotlight to highlight wood grain |
| Ideal For | Traditional homes, villas, mid-century contemporary spaces |
| Key Highlight | Natural wood grain + CNC precision, unique every time |
| Approx. Cost | ₹350–₹650 per sq ft |

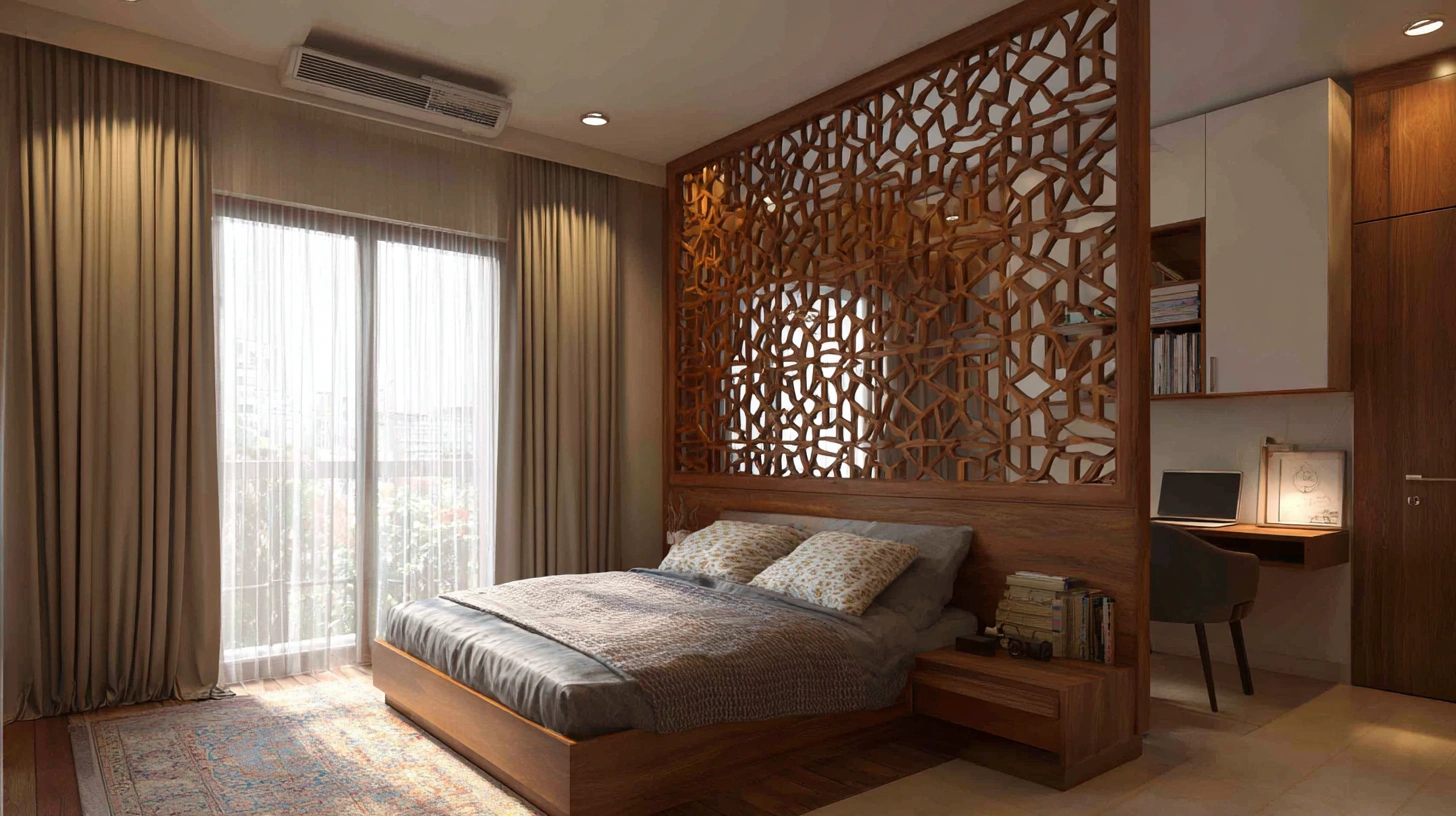

14. CNC Partition Wall
An interior CNC cutting design for partition used within a bedroom to screen the sleeping zone from a dressing area, study nook, or sitting area. A medium-complexity jali pattern in MDF allows a partial visual connection, enough to keep the room feeling open, while the panel provides a meaningful physical and psychological separation between functions in the same room.
| Feature | Details |
| Pattern | Medium-complexity geometric or floral jali |
| Material | 12mm MDF with warm matte paint or wood-finish laminate |
| Lighting | Soft warm LED strip along the top of the frame |
| Ideal For | Master bedroom design, studio apartments, bedroom with study nook |
| Key Highlight | Privacy within the room without reducing perceived space |
| Approx. Cost | ₹180–₹300 per sq ft |

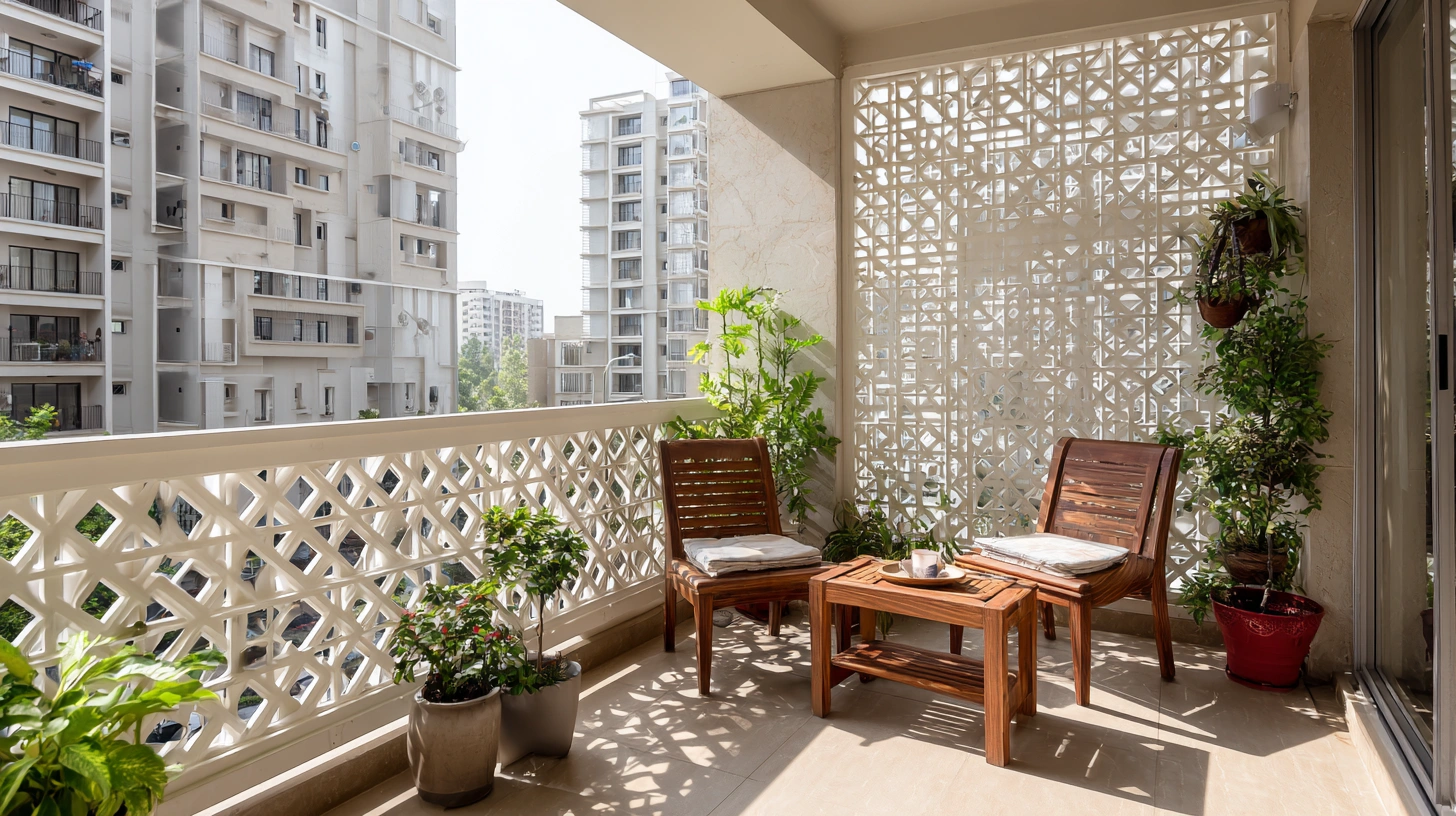

15. CNC Partition Design for Balcony Screen
A weather-resistant CNC cutting design for a wall partition used on a balcony to screen it from an adjacent unit or the street while maintaining airflow. WPC or powder-coated aluminium are the only appropriate materials for outdoor or semi-outdoor applications. MDF must never be used in humid or exposed balcony conditions.
| Feature | Details |
| Pattern | Geometric grid or abstract pattern, WPC or aluminium |
| Material | WPC (Wood Plastic Composite) or powder-coated aluminium |
| Lighting | Optional solar-powered LED strip for evening ambience |
| Ideal For | Apartment balconies, terrace screens, semi-outdoor zones |
| Key Highlight | Weather-resistant, maintains airflow and privacy |
| Approx. Cost | ₹250–₹450 per sq ft |
CNC Partition Design Cost Breakdown
Costs vary based on material, pattern complexity, panel size, and city. Below is a full breakdown for Indian homes in 2026.
| Design Type | Cost per Sq Ft | For 6×7 ft Panel | For 8×9 ft Panel |
| Simple Vertical Slat or Basic Jali (MDF) | ₹150–₹250 | ₹6,300–₹10,500 | ₹10,800–₹18,000 |
| Geometric or Floral Jali (MDF + duco) | ₹190–₹320 | ₹7,980–₹13,440 | ₹13,680–₹23,040 |
| Backlit Mandala Panel (MDF + acrylic) | ₹280–₹420 | ₹11,760–₹17,640 | ₹20,160–₹30,240 |
| Traditional Jaali (Solid Teak) | ₹350–₹650 | ₹14,700–₹27,300 | ₹25,200–₹46,800 |
| Metal Laser-Cut Screen | ₹350–₹600 | ₹14,700–₹25,200 | ₹25,200–₹43,200 |
| Double-Layer Depth Panel | ₹450–₹700 | ₹18,900–₹29,400 | ₹32,400–₹50,400 |
| Partition with Storage Frame | ₹400–₹800 | ₹16,800–₹33,600 | ₹28,800–₹57,600 |
Best Materials for CNC Partition Designs
Choosing the right material is the single most important decision before finalising any CNC cutting design for a wall partition.
| Material | Best For | Key Advantage | Avoid In |
| MDF (12–18mm) | Indoor dry spaces, all CNC styles | Affordable, cuts cleanly, takes paint well | Humid zones, kitchens, balconies |
| Solid Wood (Teak, Sheesham) | Traditional and warm-contemporary | Natural grain, ages beautifully, very durable | Budget-sensitive projects |
| WPC | Humid zones, kitchens, balconies | Moisture-resistant, low-maintenance | Not ideal for very fine patterns |
| Mild Steel or Aluminium | Contemporary and luxury living rooms | Fine detail, strong, premium finish | Traditional style interiors |
| PVC | Low-budget indoor applications | Lightweight, water-resistant, easy to clean | High-detail intricate patterns |
Colour and Finish Options
The finish defines the final character of a CNC cutting partition design as much as the pattern itself.
| Finish | Best For | Effect |
| Matte White | Neutral and Scandinavian interiors | Clean, recedes into the background |
| Matte Black | Contemporary, industrial-modern rooms | Bold contrast, editorial quality |
| Duco (colour-matched) | Rooms with a defined palette | Ties the partition into the overall scheme |
| Natural Wood Polish | Traditional and warm-contemporary | Warm, organic character |
| Brushed Gold or Copper | Luxury and premium living rooms | Hotel-suite quality, festive appeal |
| Acrylic Backlit | Feature panels with LED backlighting | Glowing, dramatic after dark |
How to Choose the Right CNC Partition Design
Choosing the right CNC design for a partition depends on room size, interior style, privacy level, and budget.
- Define the purpose first: Is the partition purely decorative, or does it need to create real zone separation?
- Choose the right material: MDF for indoor dry spaces; WPC for humid zones and kitchens; solid wood for warmth and longevity; metal for precision and luxury
- Match pattern complexity to room scale: Intricate patterns read well in large rooms; in compact spaces, simpler geometric patterns avoid visual overwhelm
- Decide on backlighting early: LED strips behind the panel must be wired before installation. Planning this at the start avoids expensive retrofitting
- Check the panel thickness: 12mm MDF is sufficient for most partitions; 18mm is recommended for doors and panels subject to physical contact.
- Coordinate the finish: Match the duco paint colour or wood polish to existing furniture, flooring, or wall paint for a cohesive interior composition
Common Mistakes to Avoid
- Using MDF outdoors or in humid zones: MDF absorbs moisture, swells, and deteriorates. Always use WPC, metal, or ACP for balconies, kitchens, and coastal city interiors
- Choosing overly fine patterns: Delicate cuts look impressive on screen, but crack during fixing, cleaning, or transport. Always review pattern thickness with the fabricator before confirming
- Skipping backlighting in the plan: Retrofitting LED strips after a panel is installed is messy and expensive.
- Not considering the back face of the panel: The side visible from the adjacent zone, dining room, foyer, and kitchen matters as much as the primary face; specify a finish for both sides
- Ignoring panel thickness for the application: A 12mm panel is fine for a decorative screen, but too thin for a partition that will carry physical load or frequent impact use 18mm for structural applications
How NoBroker Interiors Helps with CNC Partition Designs?
A well-executed CNC partition design requires the right pattern, material, finish, and installation method to work beautifully in a specific space and getting these decisions right from the start saves time, cost, and rework.
NoBroker Interiors provides end-to-end CNC cutting design for partition services from pattern selection and material sourcing to fabrication, backlighting, and installation for living rooms, halls, kitchens, bedrooms, and balconies across India. With in-house teams, transparent pricing, and a flat 10-year warranty on all completed work, every partition is built to perform and look exceptional from day one.
